ecoDustAnalyzer

Name: ecoDustAnalyzer
Brand: enecess
SKU: E2511
Price: 3610.0 EUR
Availability: OutOfStock

Real-Time Soiling Loss Monitoring for Smarter Cleaning Decisions

€3.610,00 ~~€3.800,00~~

Sale 5.0% €190,00 (5.0%)

Shipping calculated at checkout.

Smart PV Soiling Loss Monitoring Sensor: ecoDustAnalyzer measures PV soiling losses by comparing clean and soiled reference modules, providing real-time data for cleaning optimization.
Direct Soiling Measurement Solution: Uses actual Isc measurement to accurately evaluate dust impact on PV performance and improve cleaning decisions.
Reliable Outdoor Performance Monitoring: Designed for utility-scale solar plants with automatic cleaning and industrial-grade outdoor protection.

Real-Time Soiling Loss Monitoring: Quantify PV power losses caused by dust accumulation and support data-driven cleaning strategies.

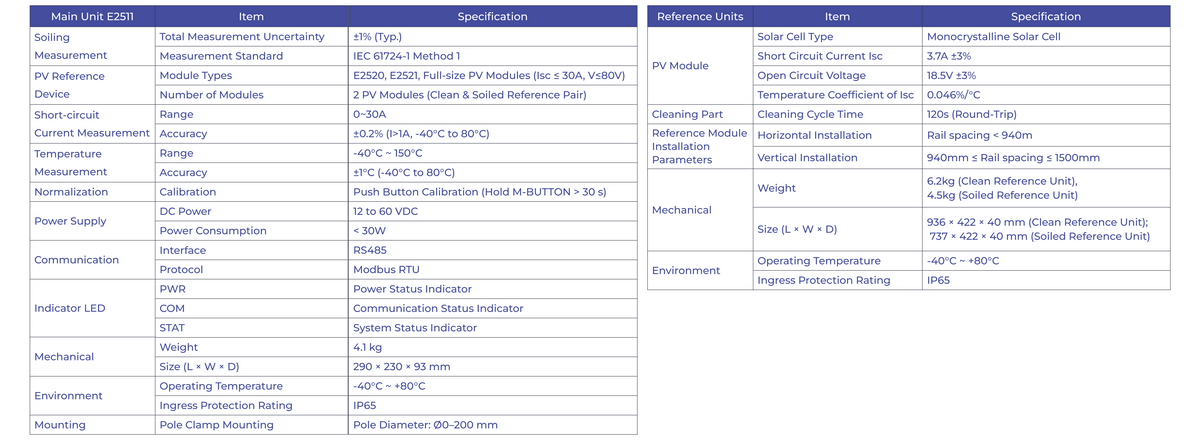

High Measurement Accuracy: Achieve ±0.2% Isc measurement accuracy with integrated temperature monitoring for reliable analysis.
Automatic Self-Cleaning Reference Module: Maintains the clean reference surface automatically to ensure consistent and accurate measurements.

Optimize Cleaning Schedule: Identify actual soiling losses and clean PV modules only when needed to reduce maintenance costs.

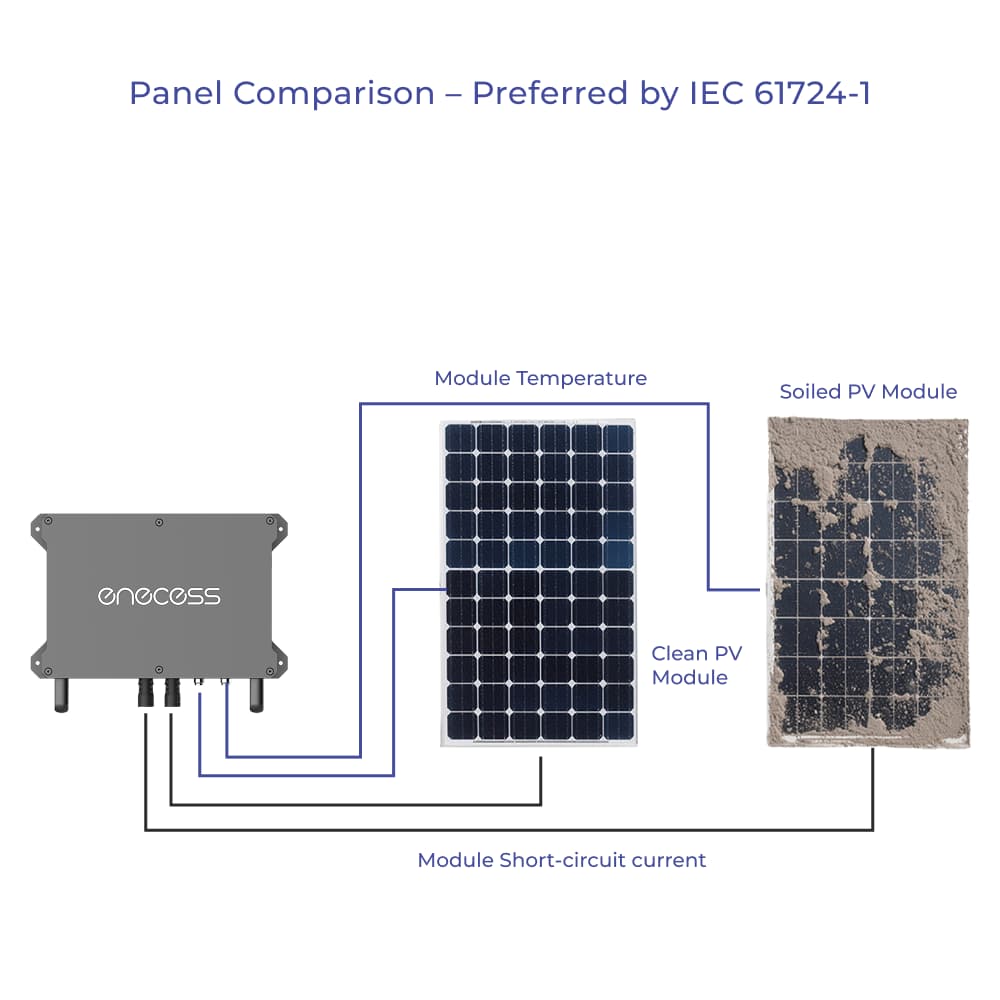

More Representative Measurement: Compare clean and soiled reference modules to better reflect real-world operating conditions.
Low Maintenance Operation: Water-free automatic cleaning design eliminates pumps, piping, and clogging risks.

Utility-Scale PV Plants: Ideal for continuous soiling monitoring, cleaning optimization, and long-term PV performance analysis.
Dusty & Harsh Environments: Designed for demanding outdoor conditions with IP65 protection and wide operating temperature range.

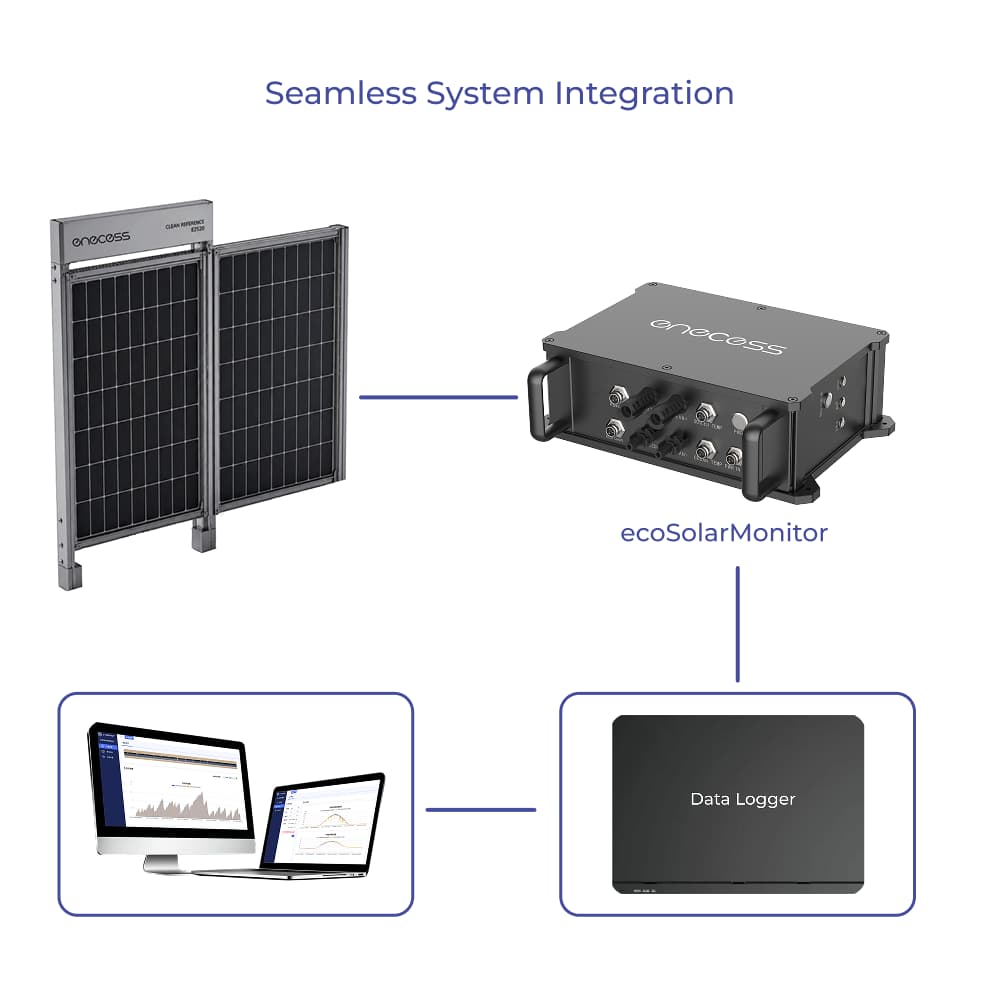

Existing PV Monitoring Systems: Easily integrates with data loggers and monitoring platforms through RS485 Modbus RTU.

Automatic Self-Cleaning Design: Keeps the clean reference module maintained automatically, reducing manual intervention and maintenance requirements.
Water-Free Operation: No pumps, piping, or water supply required, simplifying deployment and avoiding freezing or clogging issues.
IEC 61724-1 Compliant: Uses standardized direct soiling measurement methods for reliable PV performance evaluation.

Out of stock

a Buy on Amazon

Meet the enecess ecoDustAnalyzer

ecoDustAnalyzer is an IEC-compliant soiling monitoring solution that quantifies soiling-induced power losses in real time and seamlessly integrates with existing monitoring systems, providing reliable data for cleaning and O&M decisions.
